US Letter Engineering Paper PDF
US Letter portrait | 5 squares per inch | 1-inch major blocks | Pale green
US Letter engineering computation paper
Printable Engineering Paper PDF

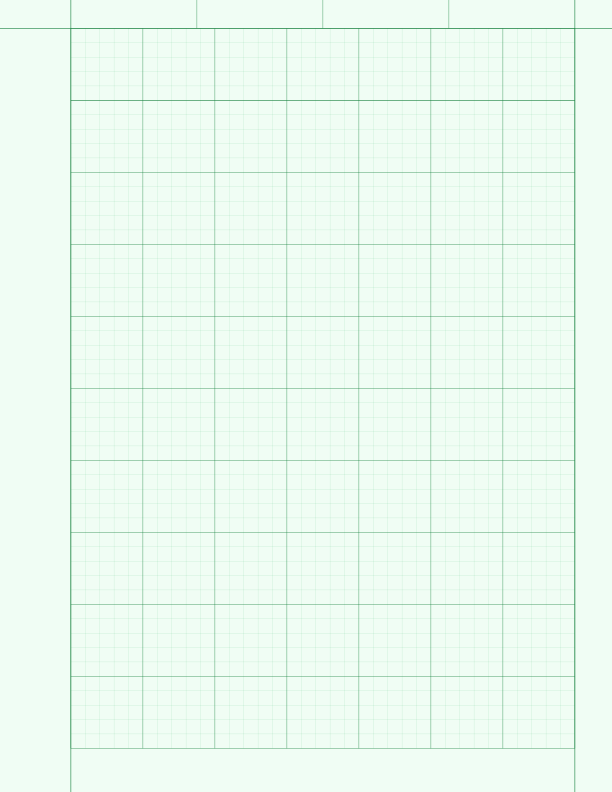

This US Letter engineering paper uses the traditional five-squares-per-inch layout. Pale green minor lines, one-inch major blocks, a wide left margin, and a divided header keep calculations and technical notes organized.
- Paper
- US Letter / Portrait
- Grid
- 5 squares per inch
- Formats
- PDF / PNG / SVG
- Layout
- Header + binding margin
Choose another engineering paper format
Letter uses the familiar five-squares-per-inch computation grid. A4 uses a finer metric grid for international printing and millimeter-based work.
Template details
About this US Letter engineering paper
This sheet follows the familiar North American engineering computation-paper layout: five squares per inch, heavier one-inch blocks, a wide left margin, and a divided identification header.
The pale green grid is visible enough for alignment while staying lighter than pencil, pen, calculations, dimensions, and diagram labels.
- Paper size
- 8.5 x 11 in (215.9 x 279.4 mm)
- Grid density
- 5 squares per inch
- Major divisions
- 1 inch (25.4 mm)
- Working area
- 180.9 x 259.4 mm
What is US Letter engineering paper used for?
Engineering paper combines a countable grid with page structure for calculations, lab work, sketches, and technical records.
Engineering calculations
Align equations, units, intermediate results, and tables while the major blocks make longer distances easy to count.
Lab and course work
Use the divided header for a name, date, course, experiment, project, drawing number, or revision reference.
Technical sketches
Lay out measured diagrams, circuit notes, free-body diagrams, dimensions, and annotations on a consistent grid.
US Letter vs A4 engineering paper
Choose US Letter when it matches the paper used by your printer, class, or organization. The two templates keep the same structured engineering-paper layout but use different grid standards.
Open A4 metric engineering paper →| Comparison | US Letter | A4 |
|---|---|---|
| Page | 8.5 x 11 in (215.9 x 279.4 mm) | 210 x 297 mm (8.27 x 11.69 in) |
| Minor grid | 5.08 mm | 1 mm |
| Major grid | 25.4 mm | 5 mm |
| Best fit | US and Canadian printers | Metric and international printers |
Print US Letter engineering paper accurately
Use the PDF when the physical grid measurement matters. Printing at the wrong scale changes every square and major block.
- 1
Load US Letter paper
Load 8.5 x 11 inch paper and choose Letter in both the PDF viewer and printer settings.
- 2
Use Actual Size
Select Actual Size or 100%. Turn off Fit, Shrink, and Scale to Page.
- 3
Keep portrait or landscape
Match the print dialog to the portrait file you downloaded.
- 4
Check one major block
Measure a heavy grid block; it should be exactly one inch wide.
US Letter Engineering Paper Downloads

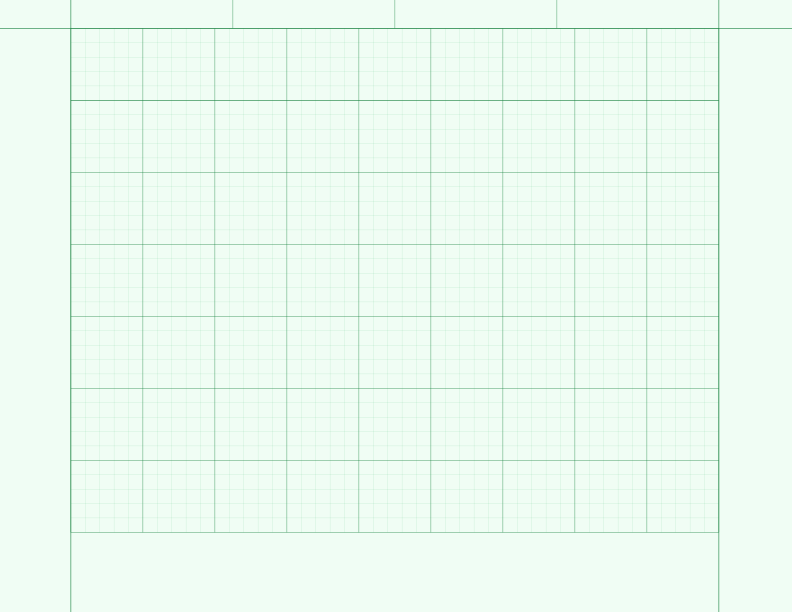

Download portrait or landscape engineering paper. Each layout is available as print-ready PDF, PNG preview, and editable SVG.
FAQ
Answers for downloading, printing, and using US Letter engineering paper.
Why is engineering paper usually green?
The pale green grid provides visible alignment without competing strongly with handwritten calculations and drawings. This printable version preserves that familiar contrast.
What does 5×5 engineering paper mean?
It means five minor squares fit across one inch. Each minor square is 0.2 inch, or 5.08mm, and heavier lines mark one-inch blocks.
Can I customize the grid and header?
Yes. Open the generator to change the paper orientation, spacing, colors, major-line interval, margins, and number of header dividers before exporting.
